A major data center faced repeated power-quality failures: capacitor banks bulging and contactors burning out, with high harmonic resonance and excessive voltage distortion. The facility operated dense nonlinear IT loads — servers, storage, and networking gear on switched-mode power supplies. This case study examines how a 300 A low-voltage Active Harmonic Filter resolved the problem, with measured before-and-after data that demonstrates the value of dynamic harmonic correction.
The Problem: Distortion Killing the Capacitor Banks
Initial site measurements at a major data center revealed critical levels of distortion. The facility had been experiencing repeated power-quality failures: capacitor banks bulging, contactors burning out, and high harmonic resonance placing the entire electrical infrastructure at risk. The site operates dense nonlinear IT loads — servers, storage arrays, and networking equipment powered by switched-mode power supplies.
- Voltage distortion (THDv): 5.9% — exceeding the 5% national standard limit for safe operation
- Current distortion (THDi): 23.5%, dominated by the 3rd and 5th harmonics. The 3rd harmonic accumulates in the neutral conductor, creating a fire risk
- Physical symptoms: Capacitor bulging and burnt contactors — classic signs of high harmonic resonance and overvoltage stress
The distortion was overheating cables and transformers, putting sensitive IT loads at risk and driving up maintenance costs.

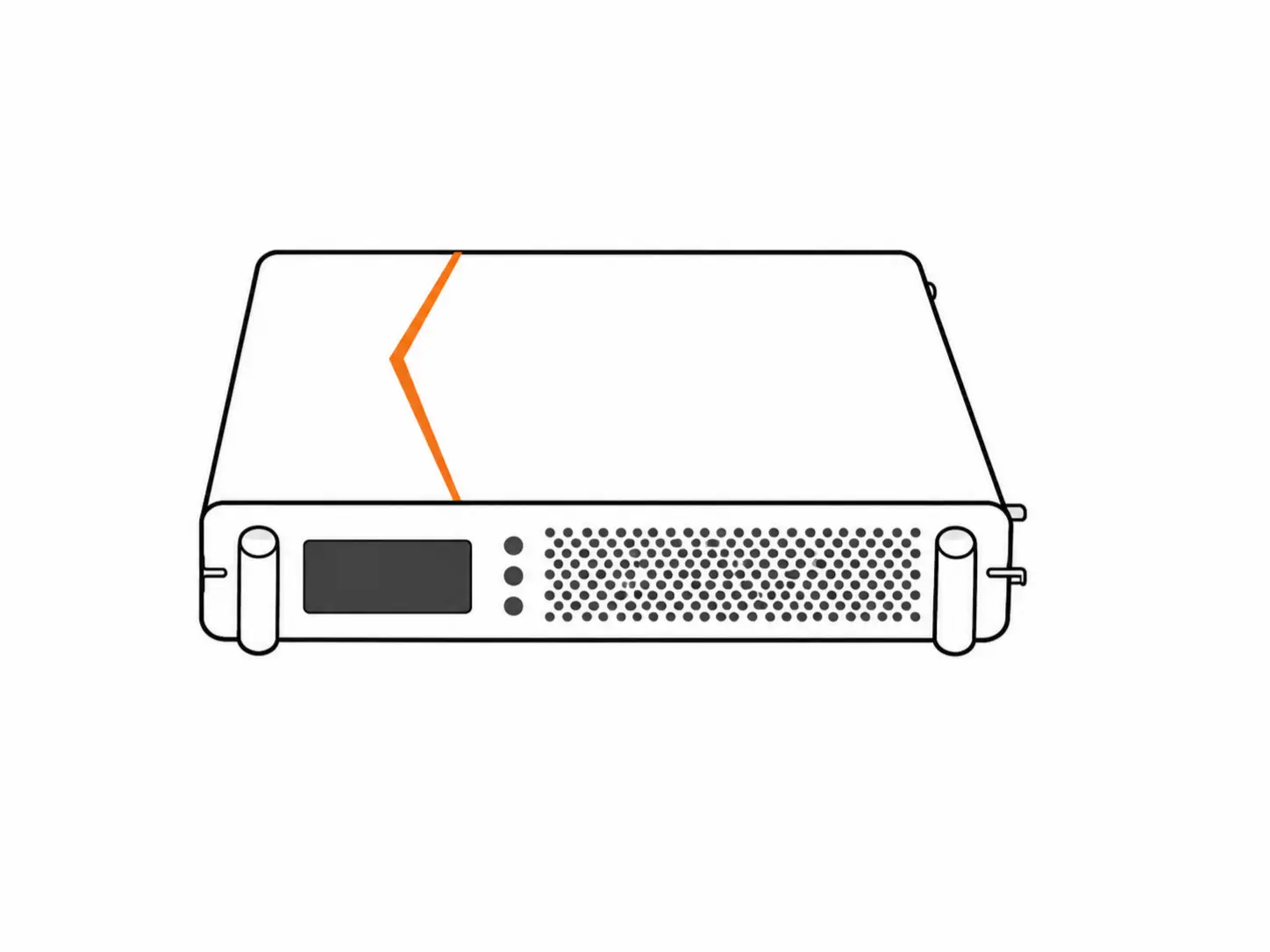

The Solution: 300 A Low-Voltage AHF
A 300 A AHF cabinet was integrated into the main distribution room for centralized coverage of all downstream racks. The CHITEK low-voltage AHF continuously measures load current through a current transformer and injects the equal, opposite-phase component:
Using high-speed DSP and IGBT control, the system responds in under 1 ms across a wide frequency band (2nd through 50th order), canceling the 3rd and 5th harmonic distortion in real time — including the neutral-conductor current that was overheating the facility's wiring.
Measured Results
| Parameter | Before AHF | After AHF |
|---|---|---|
| Voltage distortion (THDv) | 5.9% | 4.2% |
| Current distortion (THDi) | 23.5% | 2.0% |
| Power factor (PF) | — | ~1.00 |
| Capacitor banks | Bulging / contactor burnout | Normal temperature, no failures |
THDi plummeted from 23.5% to 2.0% — well inside IEEE 519 limits — and voltage distortion dropped from 5.9% to 4.2%, bringing the system back into full compliance. The capacitor banks returned to normal operation, and maintenance costs fell sharply as contactors stopped burning out.
The Converter Core: IGBT and SiC
The AHF's cancellation accuracy is fundamentally bounded by its power switch. A standard IGBT is rated to approximately 150oC junction temperature and switches typically below 20 kHz; switching losses rise with frequency and cap tracking performance. A SiC MOSFET lifts these limits significantly: silicon carbide is a wide-bandgap semiconductor (3.26 eV vs. silicon's 1.12 eV), tolerates junction temperatures up to 200oC, switches at 2-3x the IGBT frequency, and cuts switching loss by approximately 50%. This translates to 1-3% efficiency gain and tighter harmonic rejection across the full operating spectrum.
CHITEK's low-voltage AHF platforms are designed with this IGBT-to-SiC migration path in mind, making them ideally suited to the continuous, dynamically swinging load profiles of modern cloud-computing environments.
Engineering Takeaway
Tier III and Tier IV data centers need dynamic harmonic correction. Passive filters lack the response speed to handle the rapidly changing load profiles of modern server infrastructure. The proven approach is to measure THD at the PCC, deploy a dynamically controlled active harmonic filter sized to the measured distortion, and re-audit as racks are added. This is the only reliable way to keep a 24/7 power backbone clean, efficient, and compliant.
CHITEK's AHF solutions have been deployed in data center environments across multiple continents, delivering measurable improvements in THDv, THDi, power factor, and equipment reliability. Contact our team to discuss how we can help protect your critical infrastructure.
